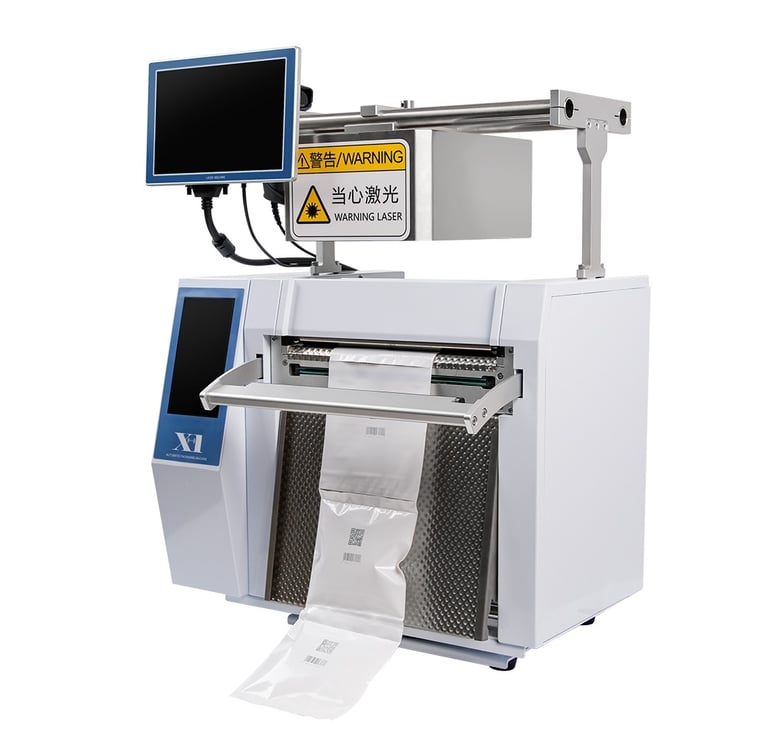

X1-L Laser Coding Desktop Packaging Machine

• The X1-L laser coding desktop packaging machine integrates coding and sealing to improve packaging efficiency.

• Equipped with a 5W water-cooled UV encoder, its laser coding is stable and reliable for small-batch items like daily goods and electronic parts.

• Supports hand-held barcode scanners to link outer packaging codes with internal material codes.

• User-friendly interface allows easy access to parameter settings and job storage.

• Offers flexible working modes—fully automatic or semi-automatic—to suit various production demands.

Working Mode:
Fully automatic / semi-automatic

Bag Sealing Speed:
Up to 25 bags per minute

Bag Size:
Bag width: 100 – 260 mm
Bag length: 100 – 430 mm

Laser Wavelength / Power:
355 nm / 5 W

Galvanometer Scanner Head:
High-precision 2D digital scanning system

Positioning Method:
Automatic red-light positioning, focusing, and preview

Character Height:
0.6 mm to maximum engraving range

Minimum Line Width:
0.02 mm

Repeat Positioning Accuracy:
0.01 mm

Printing Content:
Language characters, GS1 DataMatrix codes, 2D codes, QR codes, barcodes, graphics, serial numbers, dates, high-speed counters, variable databases, text, and real-time variable dynamic group printing (multi-information data group printing)

Bag Thickness:
8C – 24C (1C = 0.01 mm)

Marking Range:
Standard 70 × 70 mm (other sizes customizable)

Printing Parameters

Machine Parameters

Brand:
Codpad

Model:
X1-L

Working Environment:
Ambient temperature 0°C – 45°C, humidity ≤ 95%, non-condensing, vibration-free

Power Supply:
AC 100 – 240 V / 50 – 60 Hz

Laser Type:
UV Laser

Cooling System:
Water cooling

Dimensions:
Packaging machine: 560 × 530 × 750 mm
Water-cooling unit: 410 × 310 × 270 mm

Weight:
Packaging machine: approx. 54 kg
Water-cooling unit: approx. 10 kg

Packaging Operation Interface:
7-inch full-color LCD touch control, supports preview and password protection

Laser Operation Touch Interface:
10.1-inch color display, industrial-grade touch screen, embedded Linux secure operating system

Standard Communication Interfaces:
USB, RS232, TCP/IP, network interface (supports network-based remote centralized control management)
