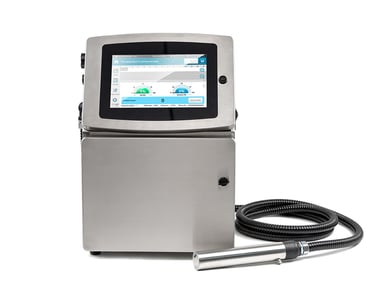

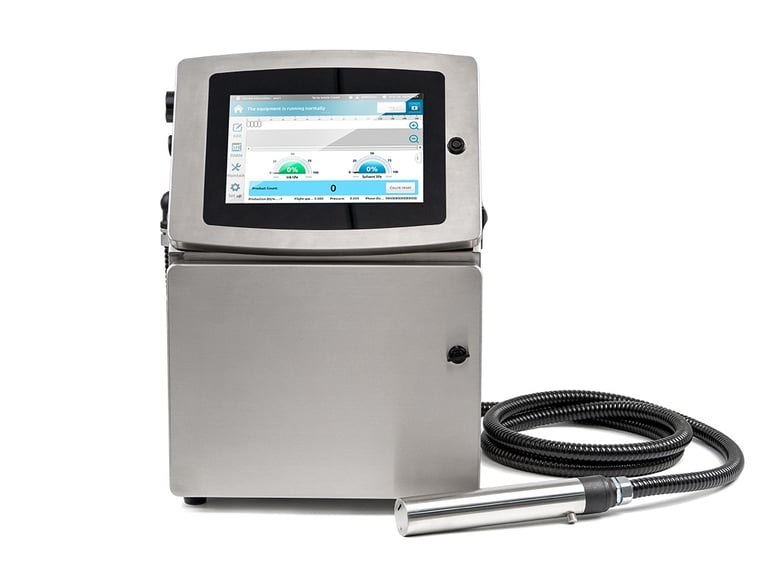

V2000 High-Performance Continuous Inkjet

• Dynamic phase adjustment mechanism for unparalleled inkjet stability.

• Large touch-screen interface for effortless operation and real-time print preview.

• Eco-conscious design reducing solvent consumption and promoting green production.

• Enhanced sealing and environmental adaptability to perform reliably in harsh conditions.

Printing Parameters

Print Head Duct: 3m

Nozzle Specifications: 60u

Printing Distance: 2-16mm

Printing Height: 3-30mm

Printing Lines: 1-5 lines

Maximum Printing Speed: 390m/min (5 dots in 1 line, 0.5 dot spacing)

Counter: Up to 24 counters

Ink Type: High adhesion, high temperature resistance, food grade, oil resistance, dye ink

Printing materials: Carton, plastic, cable, metal, boarding, pipe, stone, glass, electronic components, auto parts, industrial chemical packaging, medical/food/gift box

Print content: Text, time, date, logo, shift, SN, dynamic barcode/OR code, dynamic serial data, dynamic database(additional content can be added as required)

Barcode types: CODE11,C25INTER, CODE39,EXCODE39, EAN13, EAN13x, CODE128, CODE16K, CODE49, CODE93, Flattermarken, UPCA, UPCE, EAN14, VIN, NVE18, ITF-14

OR code types: QRcode, DataMatrix, MicroQRcode, PDF417, PDF-417TRUNC, MICROPDF417 (More types available on request)

Machine Parameters

Operation System: Embedded Linux security operating system

Display Screen: 10.1-inch capacitive touch display; resolution: 1280x800

External Interface: Photocell, encoder, alarm light, information control

Protection Level: IP65

Power Parameters: Input 100~240V AC

Material: SUS 304 stainless steel

Rated power: 100W

Certificates: CE, RoHS

Working Environment: Temperature 0-45°C/ Humidity 30-70%Rh

New weight : 18kg

Memory: 256M
