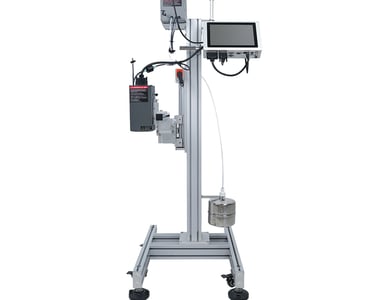

P2000 PlJ (Piezo Inkjet Printer)

• Up to 600 dpi resolution for ultra-clear print quality

• Dual printing direction (forward and side) for flexible installation

• Supports multiple ink types — water-based, quick-dry, UV

• Negative-pressure ink supply for stable continuous operation

• 10.1-inch full-color touchscreen for intuitive control

• Compact, lightweight, and CE certified for global use

Nozzle Type:
I1600 Series Nozzles

Number of Nozzles:
Single head / Dual head

Printing Accuracy:
300 dpi / 600 dpi

Printing Height:
Single head: up to 33.8 mm

Printing Speed:
190 m/min (300 dpi)
95 m/min (600 dpi)

Ink Type:
Water-based ink, quick-drying ink, UV ink

Printing Direction:
Forward / Lateral

Printing Distance:
0 – 5 mm (recommended 2 – 3 mm from printing medium)

Ink System:
Negative-pressure continuous ink supply

Printing Content:
Text, time, date, patterns, shift codes, serial numbers, dynamic barcodes / QR codes, dynamic serial port data, dynamic databases (customizable)

Printing Materials:
Carton, plastic, metal, plate, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, pharmaceutical packaging, food and gift packaging

Printing Parameters

Network Control

Operation Interface:
10.1-inch full-color LCD capacitive touch screen

Operating System:
Embedded Linux secure operating system

Cascade Support:
Supports multiple devices cascading and sharing common encoder and photocell parameters

External Interfaces:
Photocell, encoder, flip & reverse control, signal light alarm output, serial number output control, external printing information selection

Supported Languages:
Chinese, English (other languages customizable)

Communication Interfaces:
USB, RS232, TCP/IP network interface
Supports remote centralized control and integration with weighing machines, conveyors, paging machines, packaging machines, ERP systems, and pharmaceutical supervision or anti-counterfeiting traceability databases

Structural & Electrical Parameters

Power Supply:
Input: 100 – 240 VAC, 50 / 60 Hz
Power consumption: < 150 W

Machine Material:
Aviation-grade aluminum

Nozzle Installation:
Independent installation, optional anti-collision components

Machine Dimensions:
Controller: 192 × 285 × 66 mm
Print Head: 92 × 103 × 205 mm
Ink Supply System: 165 × 126 × 212 mm

Machine Weight:
Controller: approx. 2.5 kg
Print Head: approx. 1.6 kg
Ink Supply System: approx. 3.5 kg

Other Parameters

Packaging & Transportation:
Carton packaging with print-head anti-collision protection

Working Environment:
Temperature: 0°C – 45°C
Humidity: 30% – 70% RH

Certification:
CE Certified
