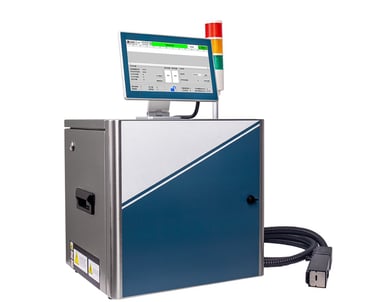

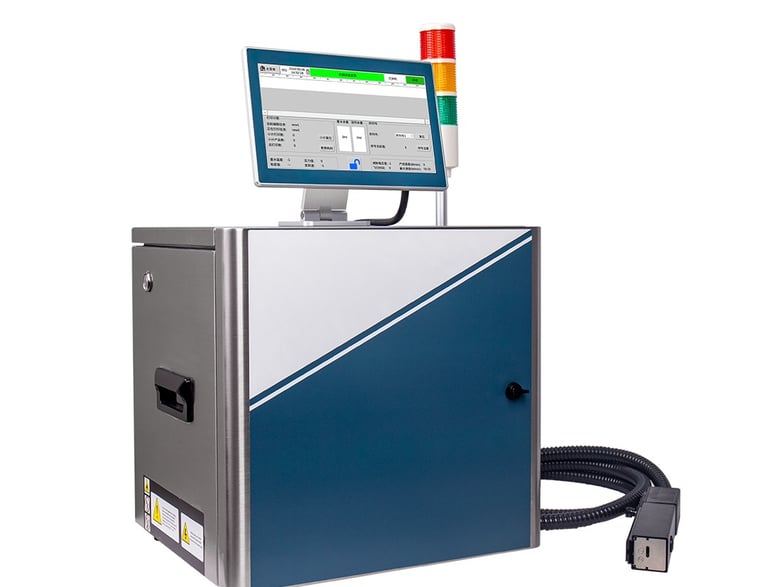

LD-S1000 Split Small Character Inkjet Printer

• Industrial-grade CPU & FPGA for stable performance

• Split design with 10.1-inch foldable touchscreen

• Automatic nozzle cleaning, anti-clogging, leak-proof

• High-speed printing up to 576 m/min

• Supports text, logos, barcodes, GS1, QR codes

• Multi-ink options: black, red, blue, green, white, invisible

• Prints on plastic, metal, glass, cartons, cables, and more

• Multi-language interface with remote control support

• Ideal for food, pharma, electronics, cable, and packaging industries

Printing Parameters

Print Head Duct: 3m / 6m

Nozzle Specifications: 50u、60u、75u

Printing height: 2-20mm

Printing distance: 3-30mm

Printing Lines: 1-4 lines (7×5 dot matrix) 1-5 lines (5×5 dot matrix)

Printing speed: 384m / min (64K 5×5) 576m / min (96K 5×5)

Counter: More than 20 independent counters

Ink color: Black, red, blue, green, white, invisible

Ink type: High adhesion, Migration resistance, High temperature resistance, Special for glass, Permeability, Food grade, Oil resistance

Font: 5×6L 7×6L 7×10L 9×8L 9×11L 11×11L 16×16L 24×24L

Print content: Text, time, date (Julian year), logo, shift, serial number, dynamic barcode / QR code, dynamic serial data, dynamic database (Additional content can be added as required)

Printing material: Carton, plastic, metal, board, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, medical / food / gift box

Machine Parameters

Operating System: Embedded Linux security operating system

Display Screen: 10.1-inch color industrial touch screen

Communication Interface: Network port, USB, RS232

Protection Level: IP55

Power Parameters: Input 100-240V AC

Rated Power: 150W

Memory: 256M

Machine Material: 304 stainless steel

Machine Specifications: 422×364×397mm (without display)

Working Environment: Temperature 0-45°C; Humidity 30-70%Rh

Related Certification: RoHS, CE, BIS

Net Weight: 24kg

Main Hardware: American TI AM3358 industrial-grade CPU, American Xilinx Spartan-6 FPGA

External Interface: Optical sensor, Encoder, Reverse & upside-down control, Signal light alarm output, Serial number output control, External printing information selection

Support Language: More than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.)
