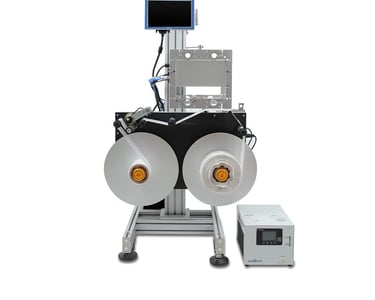

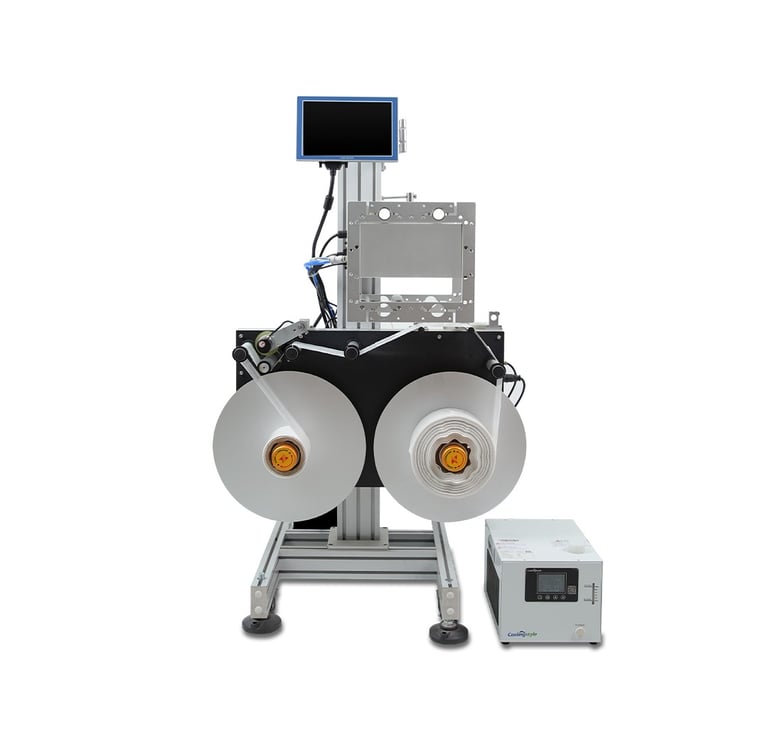

L3000 Series 5W UV Laser Marking Machine

• Ultra small host 290 × 213 × 135mm, flexible integrated production line, permanently etched, oil resistant, water resistant, high temperature resistant, zero consumables, low maintenance.

• 5W water-cooled UV laser with a wavelength of 355nm, scanning speed of 5000mm/s, repeat positioning accuracy of 0.01mm, power consumption ≤ 900W, IP43 protection.

• Cold processing protection material, intelligent power monitoring, multilingual interface, Ethernet remote monitoring.

  Suitable for PET/plastic packaging, snack/medicine/biscuit packaging, flexible circuit boards, etc.

Model:
L3005U – 355W – 1P43

Laser Energy (Laser Power):
5W

Positioning Method:
Preview

Number of Marking Lines:
Unrestricted

Character Height:
0.6 mm to maximum marking range

Minimum Line Width:
0.02 mm

Repeat Positioning Accuracy:
0.01 mm

Languages:
Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Russian, Spanish, Persian, etc.

Fonts:
Standard Chinese and English numeric font library (freely replaceable)

Graphic Formats:
JPG, BMP, PNG, DXF, DWG, PLT, AI

Barcodes:
EAN8, EAN13, CODE39, CODE128, GS1-128

Marking Range:
Standard (70 × 70 mm), optional (70 × 70 mm to 300 × 300 mm)

Galvanometer Scanner Head:
High-precision 2D digital scanning system

Controller:
10.1-inch color display, industrial-grade touch screen

Operating System:
Embedded Linux secure operating system

Cooling System:
Water cooling

Host Dimensions (Length × Width × Height):
290 × 213 × 135 mm

Installation Method:
Bracket installation (customized)

Protection Class:
IP43

Product Speed Monitoring:
Supports AB phase encoder

User Interface:
Photoelectric signal, encoder signal, alarm signal, I/O (NPN, PNP, switch-type sensors)

Power Requirements:
100 V – 240 V / 50 – 60 Hz

Total Power Consumption:
≤ 900 W

Laser Host Material:
Stainless steel

Controller Material:
Aluminum alloy

Operating Temperature / Humidity:
Ambient temperature 0°C – 45°C, humidity ≤ 95%, non-condensing, vibration-free

Laser Life:
Normal usage life of 2 – 3 years

Application Scenarios:
Suitable for both metals and non-metals, including LOGO marking on electronic products, food packaging, PVC pipes, medical packaging materials, flexible circuit boards, and more

Water Cooler Packaging Dimensions (Length × Width × Height):
420 × 320 × 280 mm

Water Cooler Gross Weight:
12 kg

Machine Packaging Dimensions (Length × Width × Height):
430 × 380 × 310 mm

Machine Gross Weight:
12.3 kg

Laser Type:
UV Laser

Marking Speed:
Depends on surface material and marking content size and complexity.
Example: Marking “2024/06/18” on PP film with character width 20 mm and height 2.8 mm at a speed of 5000 mm/s takes approximately 29 ms.

Machine Parameters
