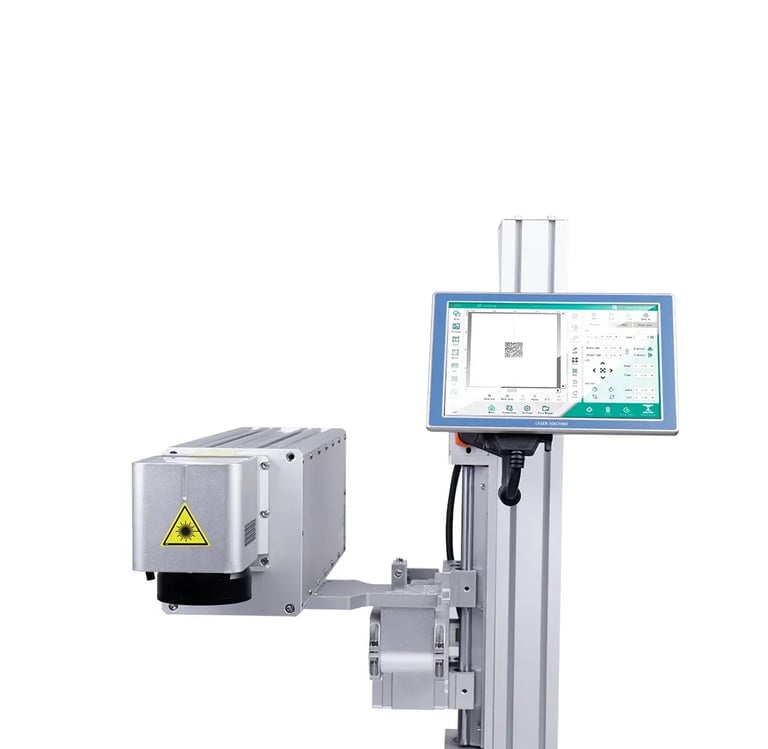

L1000 Series 5W UV Laser Marking Machine

• The UV marking laser machine has a wide range of applications. It can be used in many metal and non - metal material fields such as packaging, electronics, glass and handicrafts, such as the surface identification of high - end electronic products, food, PVC pipes, and pharmaceutical packaging materials.

• Its main feature is the use of high - precision optical components and galvanometer systems. The focused spot is extremely small, which can achieve high - precision marking and ensure the clarity and accuracy of the mark.

• Its small thermal effect will not cause material burning, deformation, etc., which is very suitable for materials with high temperature sensitivity.

Positioning Method:
Automatic red-light positioning, focusing, and preview

Marking Speed:
Depends on the surface material and the size and complexity of the marking content

Number of Marking Lines:
Unlimited

Character Height:
0.6 mm to maximum engraving range

Languages:
English, Simplified Chinese, Traditional Chinese, Korean, Japanese, Russian, Spanish, Persian, and other languages

Graphic Formats:
JPG, BMP, PNG, PLT, DXF, DOT, etc.

Other Data Formats:
Supports multiple variable data formats including date, time, serial number, random number, VIN code, file data, communication-received data, and scanning gun data; supports one-dimensional and two-dimensional barcodes, arc text, and more

Galvanometer Scanner Head:
High-precision 2D digital scanning system

Controller:
10.1-inch color display, industrial-grade touch screen

Operating System:
Embedded Linux secure operating system

Cooling System:
Air cooling

Protection Class:
IP43

Product Speed Monitoring:
Supports AB phase encoder

User Interface:
Photoelectric signal, encoder signal, alarm signal, I/O (NPN, PNP, switch-type sensors), RS232 communication, etc.

Power Requirements:
100 V – 240 V / 50 – 60 Hz

Material:
Aluminum alloy

Operating Temperature / Humidity:
Ambient temperature 0°C – 45°C, humidity < 95%, non-condensing, vibration-free

Machine Gross Weight:
11.3 kg

Model:
L1003U-355W-J-IP43 / L1005U-355W-J-IP43

Laser Type:
UV Laser

Laser Wavelength:
355 nm

Laser Power:
5 W

Marking Range:
Standard (100 × 100 mm), optional (70 × 70 mm to 300 × 300 mm)

Host Dimensions (Length × Width × Height):
668 × 160 × 189 mm

Machine Power:
≤ 900 W

Laser Life:
Normal usage life of 2 – 3 years

Packaging Dimensions (Length × Width × Height):
900 × 390 × 320 mm

Machine Parameters
