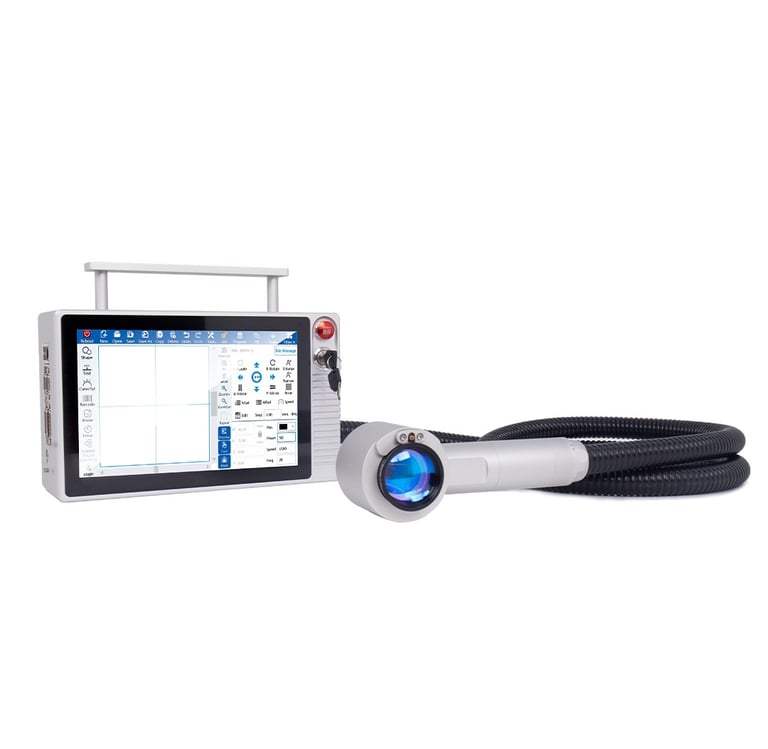

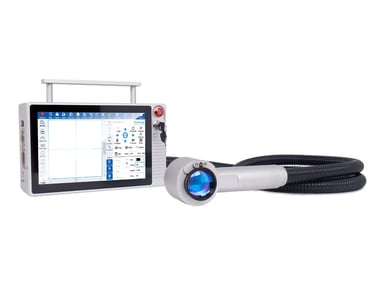

L1000 Series 18W Portable Fiber Laser

• 18W fiber laser marking machine has higher power and can easily and accurately mark on many materials such as aluminum, stainless steel, titanium, brass, gold, silver, etc. And hard plastics such as PE, PP, PVC, including general engineering plastics and special engineering plastics.

Model:
L1020F-1064F-C-IP43

Laser Type:
Fiber Laser

Laser Wavelength:
1064 nm

Laser Power:
18 W

Positioning Method:
Automatic red-light positioning, focusing, and preview

Marking Speed:
Depends on the surface material and the size and complexity of the marking content

Number of Marking Lines:
Unlimited

Character Height:
0.6 mm to maximum engraving range

Languages:
English, Simplified Chinese, Traditional Chinese, Korean, Japanese, Russian, Spanish, Persian, and other languages

Graphic Formats:
JPG, BMP, PNG, PLT, DXF, DOT, etc.

Other Data Formats:
Supports multiple variable data formats including date, time, serial number, random number, VIN code, file data, communication-received data, and scanning gun data; supports one-dimensional and two-dimensional barcodes, arc text, and more

Marking Range:
Standard (100 × 100 mm), optional (30 × 30 mm / 50 × 50 mm)

Galvanometer Scanner Head:
High-precision 2D digital scanning system

Controller:
10.1-inch color display, industrial-grade touch screen

Operating System:
Embedded Linux secure operating system

Cooling System:
Air cooling

Host Dimensions (Length × Width × Height):
342 × 105.2 × 223.6 mm (including bracket)

Protection Class:
IP43

Product Speed Monitoring:
Supports AB phase encoder

User Interface:
Photoelectric signal, encoder signal, alarm signal, I/O (NPN, PNP, switch-type sensors), RS232 communication, etc.

Power Requirements:
100 V – 240 V / 50 – 60 Hz

Machine Power:
≤ 150 W

Material:
Aluminum alloy

Operating Temperature / Humidity:
Ambient temperature 0°C – 45°C, humidity < 95%, non-condensing, vibration-free

Laser Life:
Up to 100,000 hours

Packaging Dimensions (Length × Width × Height):
640 × 400 × 310 mm

Machine Gross Weight:
11.3 kg

Machine Parameters
