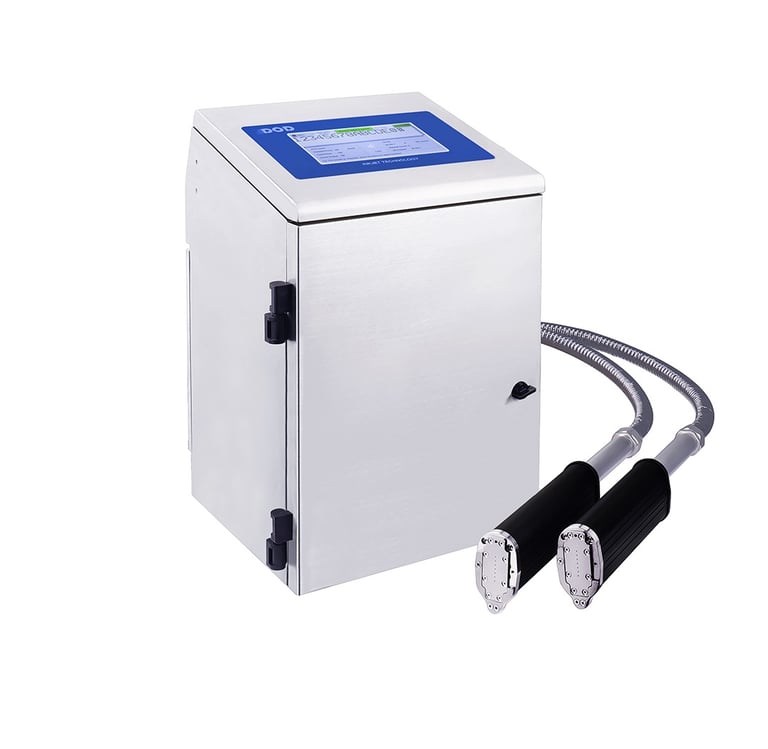

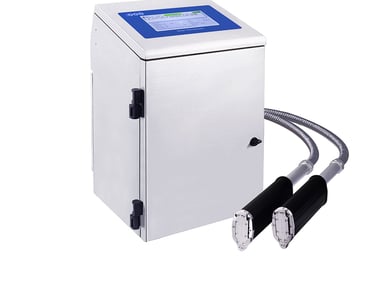

DOD D230 Industrial Inkjet Printer

• DOD Inkjet Printer

• Easy operation with 7"large screen

• One-key start and stop precise control

• Independent module maintenance is simple

• Automatic cleaning to prevent clogging

• Classic ink circuit is stable and reliable

Machine type: DOD D230 Industrial Inkjet Printer

Nozzle size: 80μm, 120μm, 150μm

Printing speed: Maximum printing speed 63m/min

Printhead duct: 3m/6m

Printing lines: 1-4 lines

Printing height: 7 dots:5-28mm 16 dots:5-64mm lines: 1 line x 2

Printing distance: 3-30mm

Max. printingspeed: 63m/min

Counter: 24 independent counters

Ink color: Black, white, red, blue, green, yellow, invisible

Ink type : Ketone-based,water-based.alcohol-based,acetone-based,pigment-based

Font: 5X6L 7X6L 7X10L

Printing material s: Permeable and non-permeable surfaces such as cartons,plastics,metals,plates pipes, stone, glass, electronic components auto parts,industrial chemical packaging, paint comparison surtaces,etc

Print content: Text, time, date.pattern, shift, serial number, dynamic barcode/OR code, dynamic serial port data, dynamic database (other content can be added according to needs)

Printing Parameters

Machine Parameters

Main hardware: American TI AM 3358 industrial grade CPU American Xilinx Spartan-6 industrial grade FPGA

Communication Interface : Network port, USB, RS232

Support language: Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.)

Power parameters: Input 100-240V AC

Machine material: 304 stainless steel

Protection level: IP65

Operation system: Embedded Linux secure operating system

Display screen: 7-inch color display,industrial touch screen

Rated power: 120W

Memory: 256M

Machine specifications: 297mmX309.37mmX502.46mm(length*width*height)

Working environment: Temperature0-45C/Humidity 30-70%Rh

Related certification: CE,ROHS.EAC

New weight: 16kg

External interface : Optical sensor, encoder, alarm light, external serialnumber control and input and output, external information selection and information inversionkg
