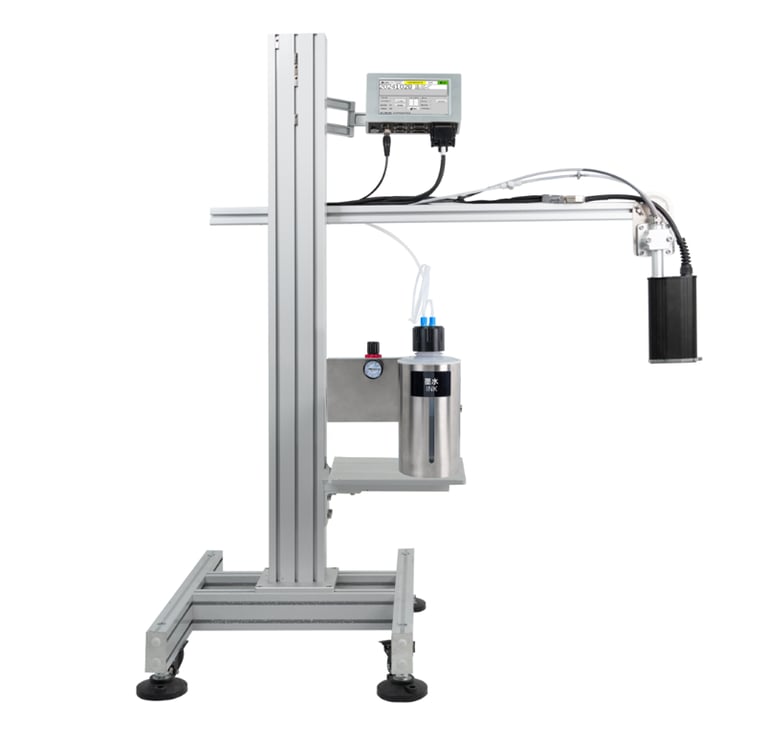

DF100 Series DF Split-Type Large Character lnkjet Printer

• DF split-type large character inkjet printer is produced with highly reliable Drop-On-Demand inkjet solenoid valve technology.

• Reliable performance, sturdy and durable, independen modules can meet the needs of various industrial inkjet printing, and can operate normally in various harsh environments, such as dusty, humid and vibrating production lines.

• High-precision nozzle manufacturing process brings highly reliable performance and extremely low maintenance requirements.

Ink color: Black, white, red, blue, green, yellow, invisible

Ink type : Ketone-based,water-based,alcohol-based,acetone -based,pigment-based

Nozzle size: 80u、120u、150u、180u

Printing distance: 3-30mm

Print content: Text, time, date, pattern, shift, serial number, dynamic barcode/OR code, dynamic serial port data, dynamic database (other content can be added according to needs)

Printhead duct: 3m/6m (customizable length for leaky wire tube)

Printing height: 7 dots:5-28mm 16 dots:5-64mm

Printing lines: 1-2 lines

Max.printing speed: 168m/min (800 dots per second)

Counter: More than 20 independent counters

Font: 5X6L 7X6L 7X10L 9X8L 9X11L 11X11L 12X12L 16X16L 11X11B 12X12B 16X16B

Automatic cleaning: NO

Printing material : Cartons,plastics,metals, plates, pipes, stones, glass,electronic components, auto parts,industrial chemical packaging, medical food gift boxes

Printing Parameters

Machine Parameters

Operation system: Embedded Linux secure operating system

Display screen: 7-inch color display, industrial touch screen

Communication interface: USB, RS232, network port

Protection level: IP65

Power parameters: Input 100~240V AC

Rated power: 120W

External interface: Photocell, encoder, alarm light, information control

Memory: 256M

Material: 304 stainless steel

Machine specifications: 297mm×309.37mm×502.46mm (L×W×H)

Working environment: Temperature 0-45°C, Humidity 30-70% Rh

Certificates: CE, ROHS, EAC

New weight: 16kg

Main hardware: American TI AM3358 industrial-grade CPU,American Xilinx Spartan-6 industrial-grade FPGA

External interface details: Optical sensor, encoder, alarm light, external serial number control, I/O, information selection/inversion

Languages: Supports >40 languages (Chinese, English, Arabic, Danish, German, Russian, French, etc.)
