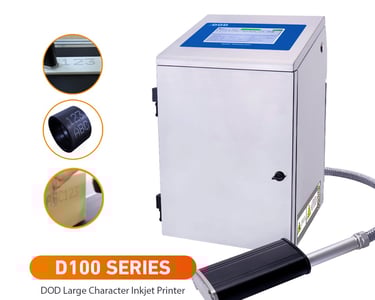

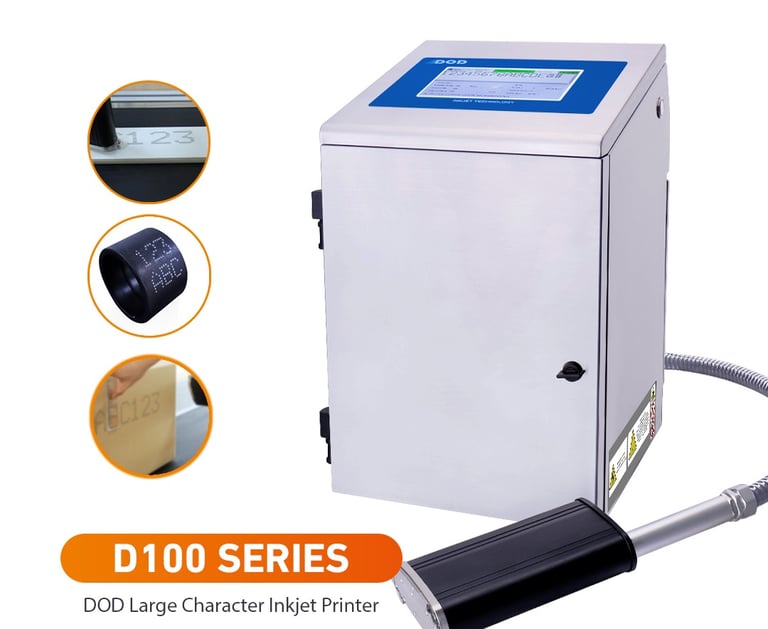

D100 Series DOD Large Character Inkjet Printer

• Operates without an external air source for reliable performance

• Automatic Stirring System: Prevents ink precipitation for consistent print quality

• Industrial-Grade Durability: Built to perform in harsh environments with a high-integration motherboard

• IP68 Protection & Connectivity: Supports RS232, network interfaces, and advanced control functions

• Rotatable Gem Nozzle: Ensures long-lasting, precise printing with flexible font and character options

Machine type: DOD D100 Inkjet Printer

Nozzle size: 80μm, 120μm, 150μm

Printhead duct: 3m/6m

Printing lines: 1-4 lines

Counter: 24 independent counters

Ink color: Black, white, red, blue, green, yellow, invisible

Ink type : Ketone-based,water-based,alcohol-based,acetone -based,pigment-based

Printing material : Permeable and non-permeable surfaces such as cartons.plastics.metals,plates pipes, stoneglass, electronic components auto parts,industrial chemical packaging paint comparison surfaces, etc

Printing height: 2-5mm

Printing distance: 1-60mm

Max printingspeed: 300dots/s

Print content: Dots,lines

Printing Parameters

Machine Parameters

Main hardware: American TI AM 3358 industrial grade CPU American Xilinx Spartan-6 industrial grade FPGA

Communication Interface : Network port, USB, RS232

Support language: Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.)

Power parameters: Input 100-240V AC

Machine material: 304 stainless steel

Protection level: IP65

Operation system: Embedded Linux secure operating system

Display screen: 7-inch color display, industrial touch screen

Rated power: 120W

Memory: 256M

Machine specifications: 297mmX309.37mmX502.46mm(length*width*height)

Working environment: Temperature0-45C/Humidity 30-70% Rh

Certificates: CE,ROHS.EAC

New weight: 16kg

External interface : Optical sensorencoder, alarm light, externa serial number control and input and output, external information selection and information inversionkg
